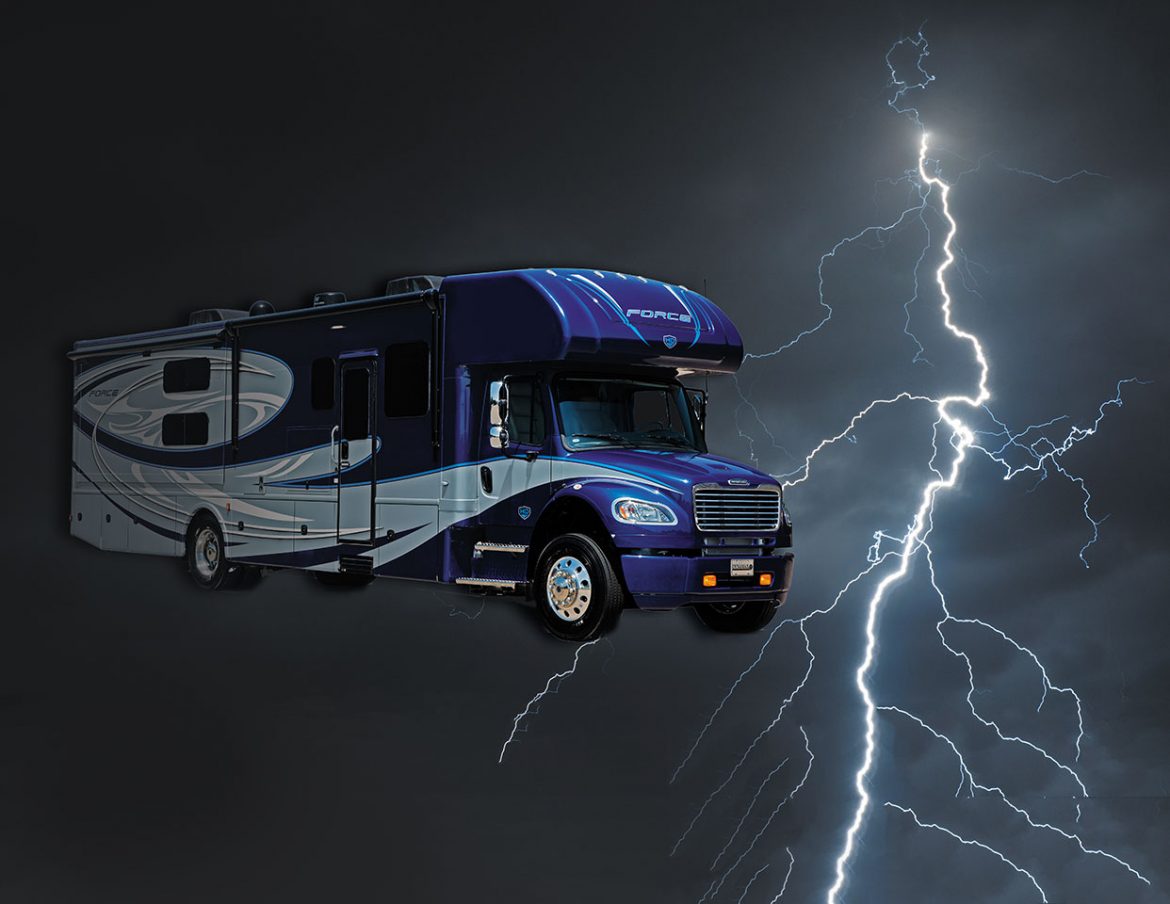

Dynamax Force HD

A look at this Type C motorhome model and the 37BH HD floor plan in particular.

By Robbin Gould
Editor
October 2018

Star Wars movie fans know the famous line, “May the Force be with you.” RVers ensconced in the Force HD motorhome from Dynamax Corporation may heed that same call as they conquer the road.

The Force HD, a Type C, seats and sleeps multiple occupants. Yet this model goes beyond the basics. Its Freightliner M2 106 chassis boasts a 33,000-pound gross vehicle weight rating (GVWR), enabling passengers to carry seemingly all the gear, groceries, and goods they need on the go. A Cummins 8.9-liter 350-horsepower ISL turbo-diesel engine with 1,000 pound-feet of torque provides the motive power, assisted by an Allison 3200 TRV six-speed automatic transmission. This unit also offers 20,000 pounds of towing capacity.

Safety-conscious RVers will want to note that the Freightliner M2 is an automotive, crash-tested chassis said to offer up to 5 feet of crush zone protection.

Construction And Exterior Features
The front cab, with a distinctive chrome grille, is made of corrosion-proof aluminum reinforced with e-coated steel. The hood is equipped with gas struts for easy engine access. A “muscle-car-style coach” is added to the cab platform.

The coach body is constructed with 2-inch aluminum-framed, laminated sidewalls insulated with block foam and joined to aluminum-framed floor and roof trusses. Gel-coat fiberglass forms the exterior walls. Fiberglass also is used for the front and rear caps; front wing panels; and crowned, one-piece roof. Foil-lined ductwork runs throughout the vehicle.

The Force HD rides on Michelin XZE2 275/80R 22.5 tires with aluminum rims — single front wheels on the 12,000-pound-rated front axle, and double wheels on the 21,000-pound-rated Quiet Ride Rear axle. Ride and handling are augmented by Bilstein gas-charged front shock absorbers and a front sway bar. The coach has air brakes with four-wheel ABS, plus a dual-stage C-brake by Jacobs. Automatic four-point hydraulic leveling jacks facilitate camp setup.

Custom full-body exterior paint is applied to all Dynamax motorhomes. The entire process occurs in a dedicated, state-of-the-art paint facility at the company’s production headquarters in Elkhart, Indiana. This enables technicians to focus on details, and thus control quality. The 2019-model Force HD comes in five exterior paint schemes: Admiral Blue, Black Mirage, Cabernet, Desert Mirage, and Magnetic.

Once all trim and accessories are removed, crevices are sealed, sanding is done, and windows are taped, technicians apply high-quality BASF paint. After multiple layers of color, drop shadows, and sealer coats, a final cut-and-buff process removes microscopic layers. The result is a smooth, mirrorlike finish. Thanks to airbrushing and hand-taping paint lines to match body contours, no two paint jobs are exactly alike.

Motorhome utilities include two 12-volt 4D AGM deep-cycle batteries; 50-amp electrical service with a power cord reel; dual ducted, 15,000-Btu low-profile air conditioners with heat strips; a 40,000-Btu propane-powered furnace with electronic ignition; and a 60,000-Btu Truma Aqua Go Comfort on-demand water heater.

At press time, the Force HD included three floor plans for 2019 — the 34KD HD, the 37TS HD, and the 37BH HD. The 37BH HD, pictured in this article, contains a street-side slideout in the living area and a second curb-side slideout that houses bunk beds and cabinetry.

A Look Inside

The Force HD’s interior is roomy and welcoming, with upscale contemporary décor. Shaker-style hardwood cabinetry comes in two colors: Driftwood or a darker Caramel. Three décor choices are available. Vinyl flooring is used throughout, augmented by carpet in select slideout areas. Day-night shades provide privacy and light protection for the dual-pane, dark-tinted frameless windows; the front window is outfitted with thermal, reflective front privacy shades.

The 37BH HD floor plan may be particularly appealing to families who need extra sleeping berths. Up front, the cab-over area is fitted with a 59-inch-by-79-inch mattress. On the rear street-side wall resides a king-size bed with a gel-infused foam mattress. Across the coach in the curbside slideout are a pair of bunk beds, each with its own window, privacy partition, and CD/DVD player with monitor. Additional sleeping space can be created with the Dream Dinette and the sofa bed up front. (Customers may select optional theater seating in place of the sofa.)

Entertainment features in the living area include a 39-inch LED TV on a swivel bracket, and a JBL 2.1 sound bar with a Smart Blu-ray player. An optional fireplace with a 50-inch pop-up TV replaces the smaller TV in two Force HD floor plans, including the 37BH HD.

The galley is nicely outfitted with a 16-cubic-foot double-door residential refrigerator with ice maker, a gas range with solid-surface covers, and a convection-microwave oven. This area includes solid-surface counters and covers for the double-bowl stainless-steel sink.

The bath is just aft of the galley. The vanity features another solid-surface counter, which secures an under-mount sink and residential brushed-nickel faucet. A fiberglass shower, topped with a skylight, is enclosed by a rounded glass door.

The aforementioned king bed in the rear is graced by a padded headboard and a designer bedding package. Nightstands with solid-surface countertops flank the bed. LED reading lights provide illumination when relaxing with a good book. A 32-inch LED TV is also located here.

A long list of standard features fill the Force HD, including the following: water filtration unit, USB charging ports, a holding tank vent cap to eliminate gases and odors, an LP quick connect for use with a portable grill, and MaxxAir vents with rain covers and remotes.

All Dynamax motorhomes come with a two-year limited warranty. And for answers to questions any time they arise, online owners manuals are available. Or try the free mobile app for both Apple and Android devices.

SPECS | Dynamax Force HD 37BH HD











COMPANY
Dynamax Corporation, 2745 Northland Drive, Elkhart, IN 46514; (888) 295-7859; www.dynamaxcorp.com

MODEL
Force HD

FLOOR PLAN
37BH HD

CHASSIS
Freightliner M2 106

ENGINE
Cummins 8.9-liter ISL turbo-diesel; 350 horsepower at 1,000 pound-feet torque

TRANSMISSION
Allison 3200 TRV 6-speed automatic

AUXILIARY GENERATOR
8-kw Onan diesel with automatic transfer switch

AXLE RATIO
4.56 to 1

WHEELBASE
268 inches

SUSPENSION
front — Bilstein gas-charged for shock absorption; upgraded sway bar
rear — Airliner with manual dump valve switch

ALTERNATOR
275 amps

BATTERIES
chassis — (2) Group 31, 12-volt maintenance-free, 2,250 cca;
coach — (2) 12-volt 4D AGM deep-cycle maintenance-free

ELECTRICAL SERVICE
50 amps

EXTERIOR LENGTH
39 feet 2 inches

EXTERIOR WIDTH
101 inches

EXTERIOR HEIGHT
12 feet 9 inches with A/C

INTERIOR HEIGHT
7 feet

GROSS VEHICLE WEIGHT RATING (GVWR)
33,000 pounds

GROSS COMBINATION WEIGHT RATING (GCWR)
54,000 pounds

GROSS AXLE WEIGHT RATING (GAWR)
front — 12,000 pounds;
rear — 21,000 pounds

OCCUPANT AND CARGO CARRYING CAPACITY
8,500 pounds

FRESH WATER CAPACITY
94 gallons

HOLDING TANK CAPACITIES
gray water — 52 gallons;
black water — 52 gallons

FUEL CAPACITY
(2) 50-gallon tanks plus 6-gallon DEF tank

FUEL REQUIREMENTS
diesel

PROPANE CAPACITY
20.3 gallons

WATER HEATER
60,000-Btu Truma Aqua Go on-demand

HEATING SYSTEM
40,000-Btu with electronic ignition

AIR CONDITIONING
(2) 15,000-Btu low-profile units with heat strips

REFRIGERATOR
16-cubic-foot residential

TOILET
porcelain with foot flush

WARRANTY
2 years limited

MANUFACTURER’S SUGGESTED RETAIL PRICE
$274,923
